Specifications

Product Type

Analog Timer

Brand

ABB

Series

Function Daily	Contact Type Change-Over (CO)	Rated Operational Voltage (Ue) 230V
Accuracy Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 5 minutes	Power Loss Total 1.8W	Minimum Switching Time 15 min
Max. Switching Power 4000W Incandescent Lamp or Halogen High Voltage Lamps 2500W Fluorescent Lamp 1200W Low Voltage Halogen Lamp 2000W Low Consumption Lamp (CFL) 2500W LED 900W	Battery Life 30 year

Conductor Cross Section Solid Core

4mm²

Max. Load Capacity

Resistive Load 16 A Inductive Load 4 A

Depth 72mm	Height 55mm	Weight 0.181kg
Width 72mm	Width in No. of Modular Spacing 1

Storage Temperature

-20°C to 60°C

Operating Temperature

-10°C to 45°C

IP Rating

Housing IP20

No. of Channels

Standards and Approvals

REACH, RoHS, EN 60730-2-7, CE

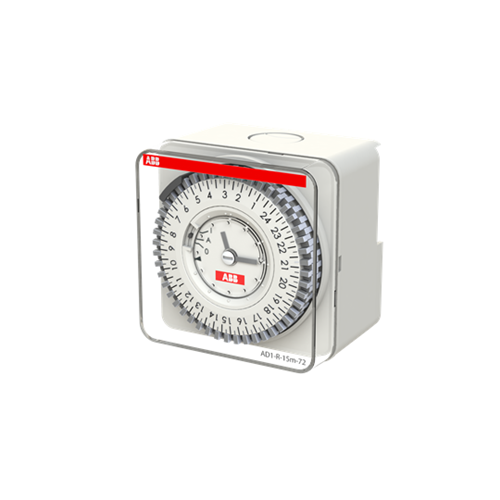

ABB AD1-R-15M-72 Analog Time Switch 1CO 230V
