ACQ580-01 drives offer innovative pump features for the water and wastewater industry. Ensures energy-efficient water and wastewater flow in pumping solutions. Compact, robust, wall-mounted design. Built-in pump functionalities include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and impeller cleaning. Enhanced usability with the intuitive Hand-Off-Auto control panel, PC tool Drive Composer, and optional Bluetooth® control panel. Built-in energy calculator visualizes energy savings. ACQ580-01 comes in an IP21 enclosure as standard for wall installation. IP55 and flange mounting options are also available.

Specifications

Product Type

Variable Speed Drive

Brand

ABB

Series

ACQ580

No. of Analog Inputs 2	No. of Phases 3-phase input / 3-phase output	Rated Current (In) 89A
Rated Power 45000W	Rated Voltage (Ur) 3-phase 380 ... 480V AC

Mounting

Wall mounted

Depth

265mm

Height

636mm

Width

203mm

IP Rating

IP55

Ambient Temperature

-15°C to 50°C

Standards and Approvals

CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

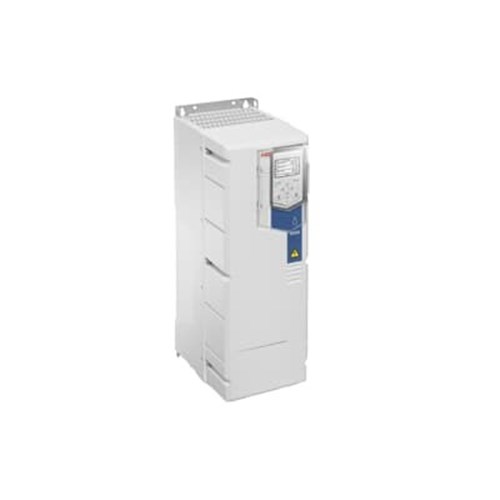

ABB ACQ580 45KW 89A IP55 WATER DRIVE W/ BLUETOOTH CP ACQ580-01-089A-4+B056+J429 3AXD50001063153
