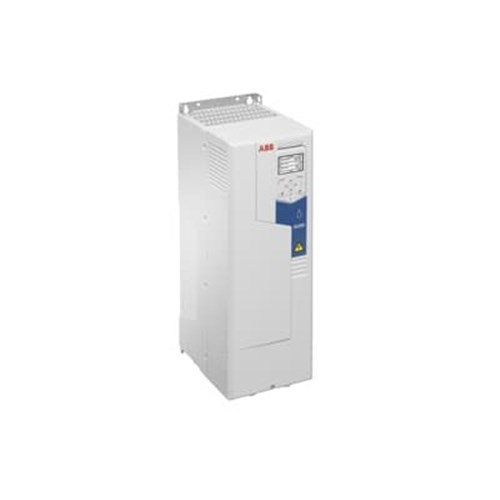

ACQ580-01 drives offer innovative pump features for water and wastewater industries. Ensures energy-efficient water and wastewater flow in pumping solutions. Robust, compact, wall-mounted drive with built-in pump application functionality. Features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and impeller cleaning solutions. Enhanced usability with intuitive Hand-Off-Auto control panel, PC tool Drive Composer, and optional Bluetooth® control panel. Built-in energy calculator visualizes energy savings. ACQ580-01 variant available in IP21 enclosure for standard wall installation. IP55 and flange mounting options also available.

Specifications

Product Type

Water & Wastewater Drives

Brand

ABB

No. of Input Phases 3-phase	Nominal Input Voltage 380V to 480V	Normal Duty Amps 89A
Normal Duty kW 45kW	Heavy Duty Amps 72A	Heavy Duty kW 37kW

Frame Size

Control Panel (Keypad)

Yes

Depth 257mm	Height 636mm	Weight 22kg
Width 203mm

Operating Temperature

Maximum 50°C Minimum -15°C

IP Rating

IP21

Standards and Approvals

UNSPSC: 39122001

VSD WATER ACQ580 45KW 89A IP21 WITH BLUETOOTH PANEL ABB ACQ580-01-089A-4+J429
