ACH580 HVAC drive includes key features for controlling fans, pumps, compressors, air-handling units, and chillers. Ensures smooth and energy-efficient operation for both normal and mission-critical HVAC systems. Built-in features reduce installation time. Intuitive control panel with HVAC-specific primary settings menu and help assistants. Simplifies startup, commissioning, and operation processes. Optional Bluetooth® capability for commissioning and monitoring from a distance. ACH580-01 available in IP21 enclosure for standard wall installation. IP55 and flange mounting options are also available.

Specifications

Product Type

Variable Speed Drive

Brand

ABB

Series

ACH580

No. of Analog Inputs 2	No. of Phases 3-phase input / 3-phase output	Rated Current (In) 89A
Rated Power 45000W	Rated Voltage (Ur) 3-phase 380 ... 480V AC

Mounting

Wall mounted

Depth

320mm

Height

732mm

Width

203mm

IP Rating

IP55

Ambient Temperature

-15°C to 50°C

Standards and Approvals

CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

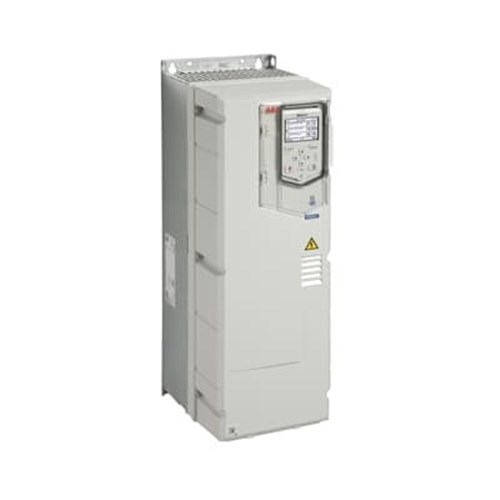

ABB ACH580 45KW 89A IP55 HVAC DRIVE W/ CP ACH580-01-089A-4+B056+J400 3AXD50001063139
