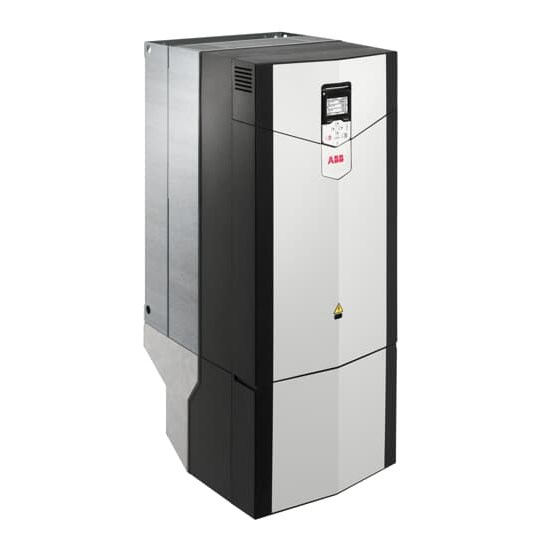

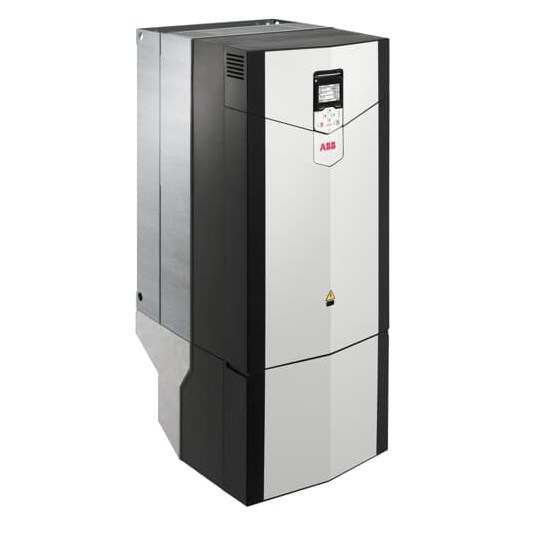

VSD ACS880 250KW 430A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-430A-3+B056+D150+E20

Product Code: 88001430510

  • High power output of 250 kW
  • Operates at 380-415 VAC, 430 A
  • Robust IP55 protection rating
  • Wall-mounted design for space efficiency
  • Compliant with multiple global standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
430A
Normal Duty kW
250kW
Heavy Duty Amps
363A
Heavy Duty kW
200kW

Mechanical

Frame Size
R9
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
413mm
Height
955mm
Weight
95kg
Width
380mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
