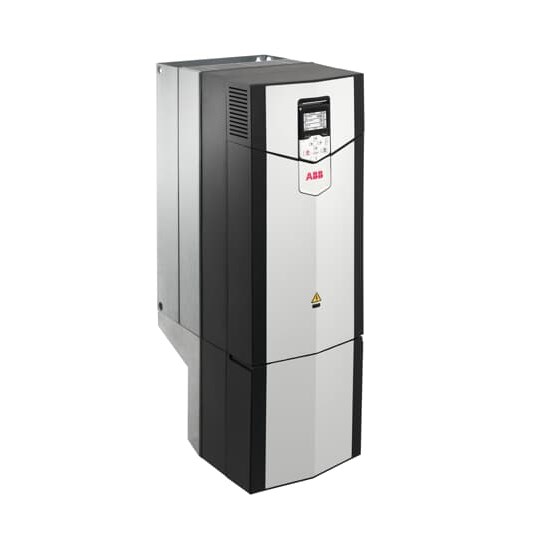

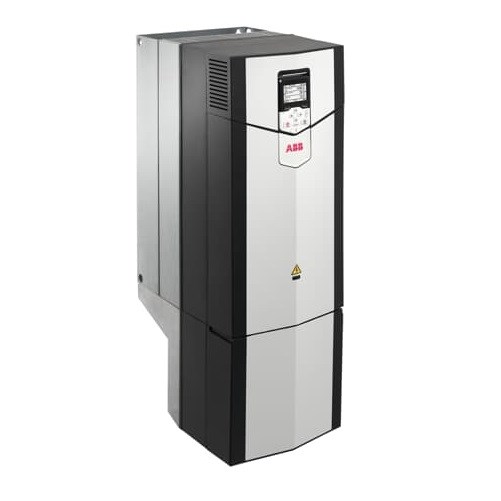

VSD ACS880 110KW 206A IP21 WITH BLUETOOTH CONTROL PANEL ACS880-01-206A-3+D150+E200+P90

Product Code: 88001206310

  • Rated power of 90 kW for robust performance
  • Operates at 380-415 VAC with 206 A current
  • IP21 protection for indoor use
  • Wall-mounted to save space
  • CE, ATEX, and RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
206A
Normal Duty kW
110kW
Heavy Duty Amps
169A
Heavy Duty kW
90kW

Mechanical

Frame Size
R7
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
365mm
Height
880mm
Weight
53kg
Width
284mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
