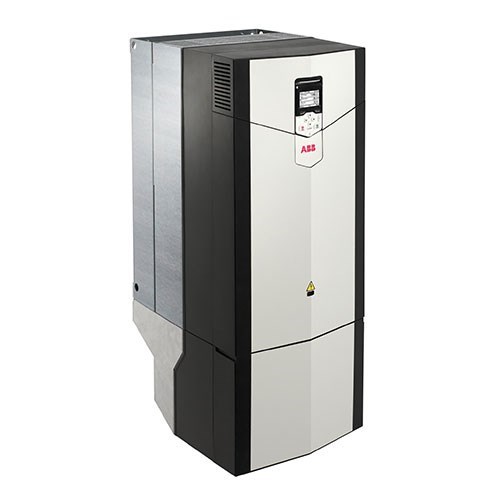

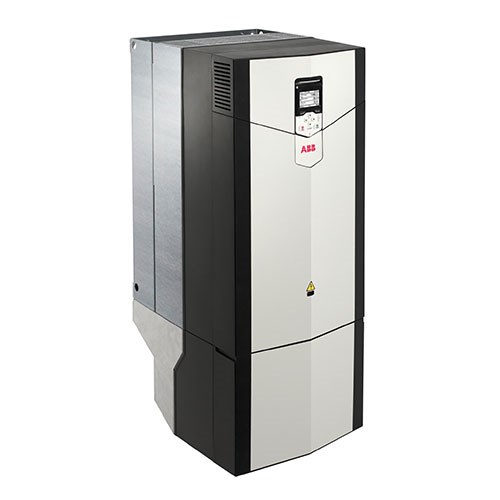

VSD ACS880 55KW 105A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-105A-3+B056+D150+E20

Product Code: 88001105510

  • Industrial-grade ACS880 series for robust applications
  • Operates on 380-415 VAC, handling up to 105 A
  • IP55 protection ensures durability in harsh environments
  • Wall-mounted design saves space and simplifies installation
  • Complies with CE, ATEX, RoHS, TUV, UL & CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
105A
Normal Duty kW
55kW
Heavy Duty Amps
87A
Heavy Duty kW
45kW

Mechanical

Frame Size
R5
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
357mm
Height
727mm
Weight
42.2kg
Width
252mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
