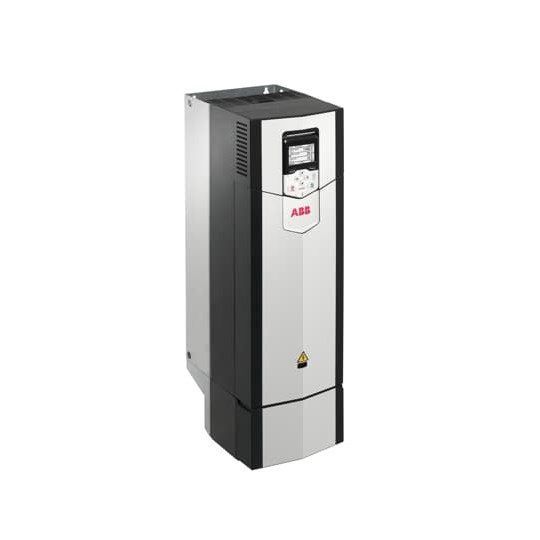

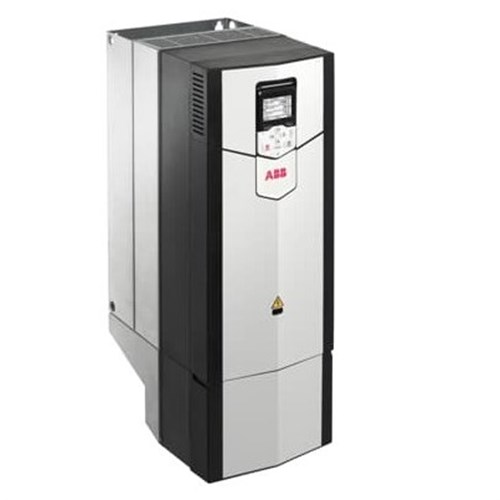

VSD ACS880 45KW 87A IP21 WITH BLUETOOTH CONTROL PANEL ACS880-01-087A-3+D150+E200+P90

Product Code: 88001087310

  • 380-415 VAC, 87 A rated for industrial use
  • IP21 protection for safe operation
  • Wall mount design saves space
  • Operates in -15 to 40°C environments
  • Complies with CE, ATEX, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
87A
Normal Duty kW
45kW
Heavy Duty Amps
72A
Heavy Duty kW
37kW

Mechanical

Frame Size
R5
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
357mm
Height
727mm
Weight
42.2kg
Width
252mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
