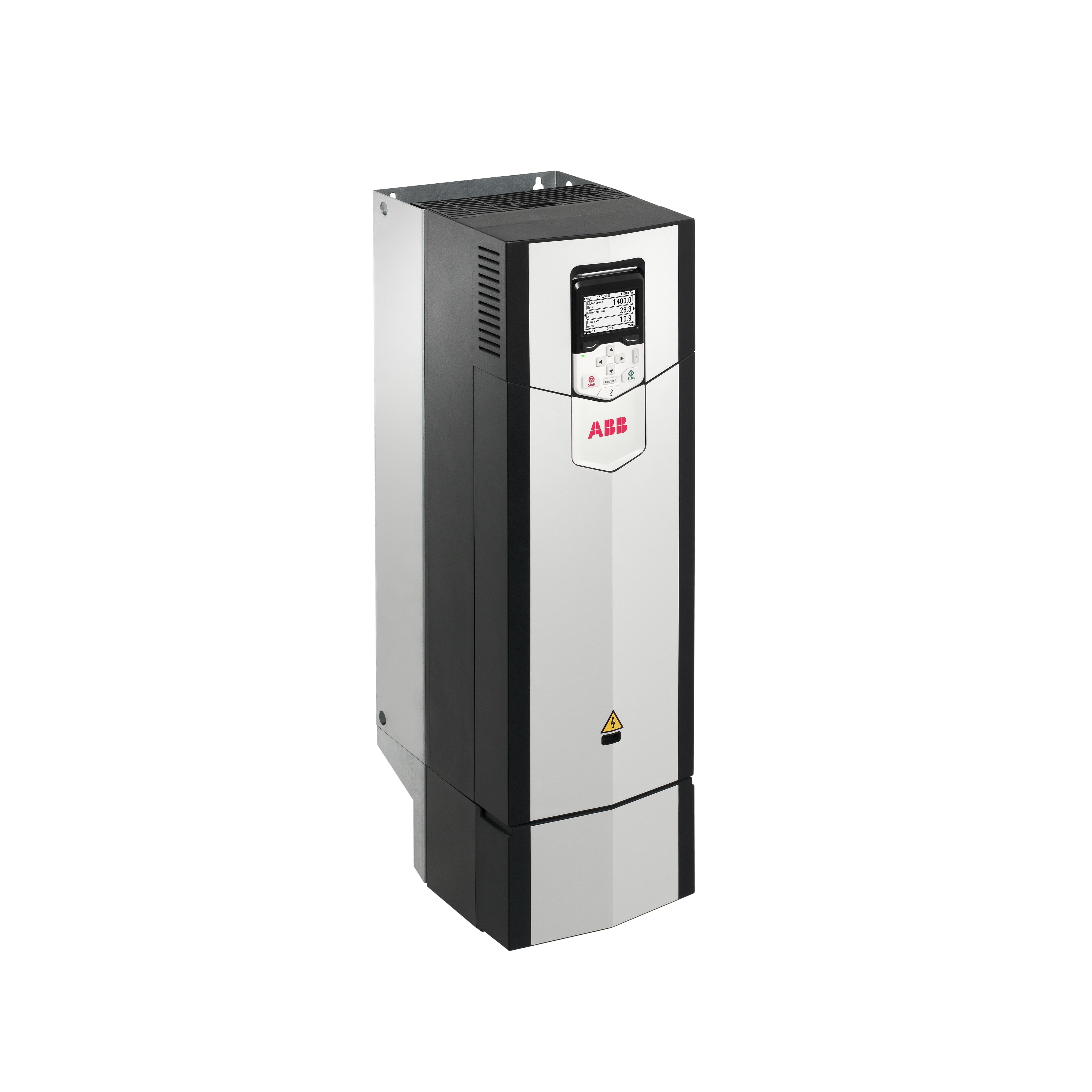

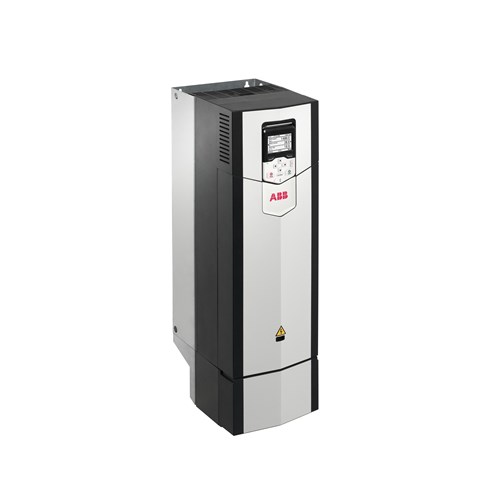

VSD ACS880 37KW 72A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-072A-3+B056+D150+E20

Product Code: 88001072510

  • Rated for 380-415 VAC, 72 A
  • IP55 protection for harsh environments
  • Wall-mounted design saves space
  • Operates in -15 to 40°C temperature range
  • Complies with CE, EMC, ATEX, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
72A
Normal Duty kW
37kW
Heavy Duty Amps
61A
Heavy Duty kW
30kW

Mechanical

Frame Size
R5
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
274mm
Height
732mm
Weight
22.8kg
Width
203mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
