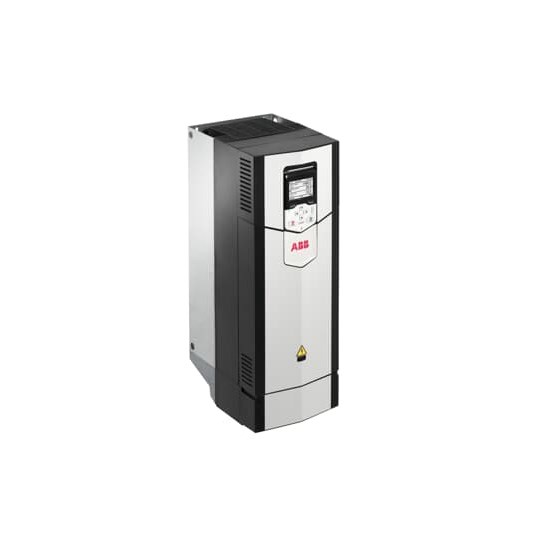

VSD ACS880 30KW 61A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-061A-3+B056+E200+P90

Product Code: 88001061510

  • Rated for 380-415 VAC, 61 A
  • Robust IP55 protection
  • Wall mountable design
  • Operates in -15 to 40°C range
  • Complies with CE, EMC, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
61A
Normal Duty kW
30kW
Heavy Duty Amps
45A
Heavy Duty kW
22kW

Mechanical

Frame Size
R5
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
274mm
Height
580mm
Weight
18.6kg
Width
203mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
