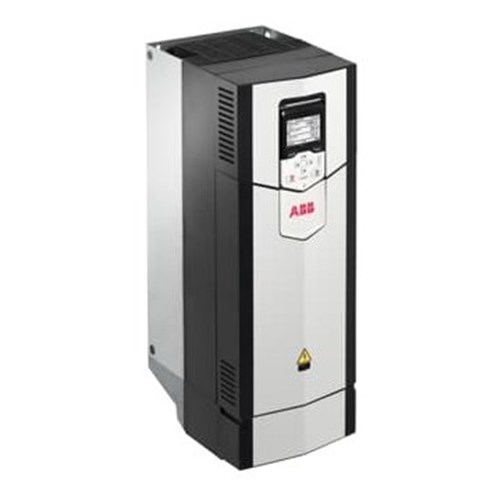

VSD ACS880 22KW 45A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-045A-3+B056+E200+P90

Product Code: 88001045510

  • Industrial-grade ACS880 series drive
  • Rated voltage: 380-415 VAC, current: 45 A
  • Robust IP55 protection for harsh environments
  • Compact wall mounting design
  • Complies with CE, EMC, ATEX, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
45A
Normal Duty kW
22kW
Heavy Duty Amps
38A
Heavy Duty kW
18.5kW

Mechanical

Frame Size
R4
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
274mm
Height
580mm
Weight
18.6kg
Width
203mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
