Products

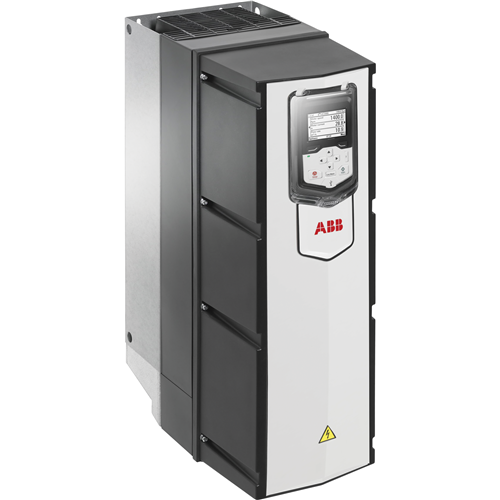

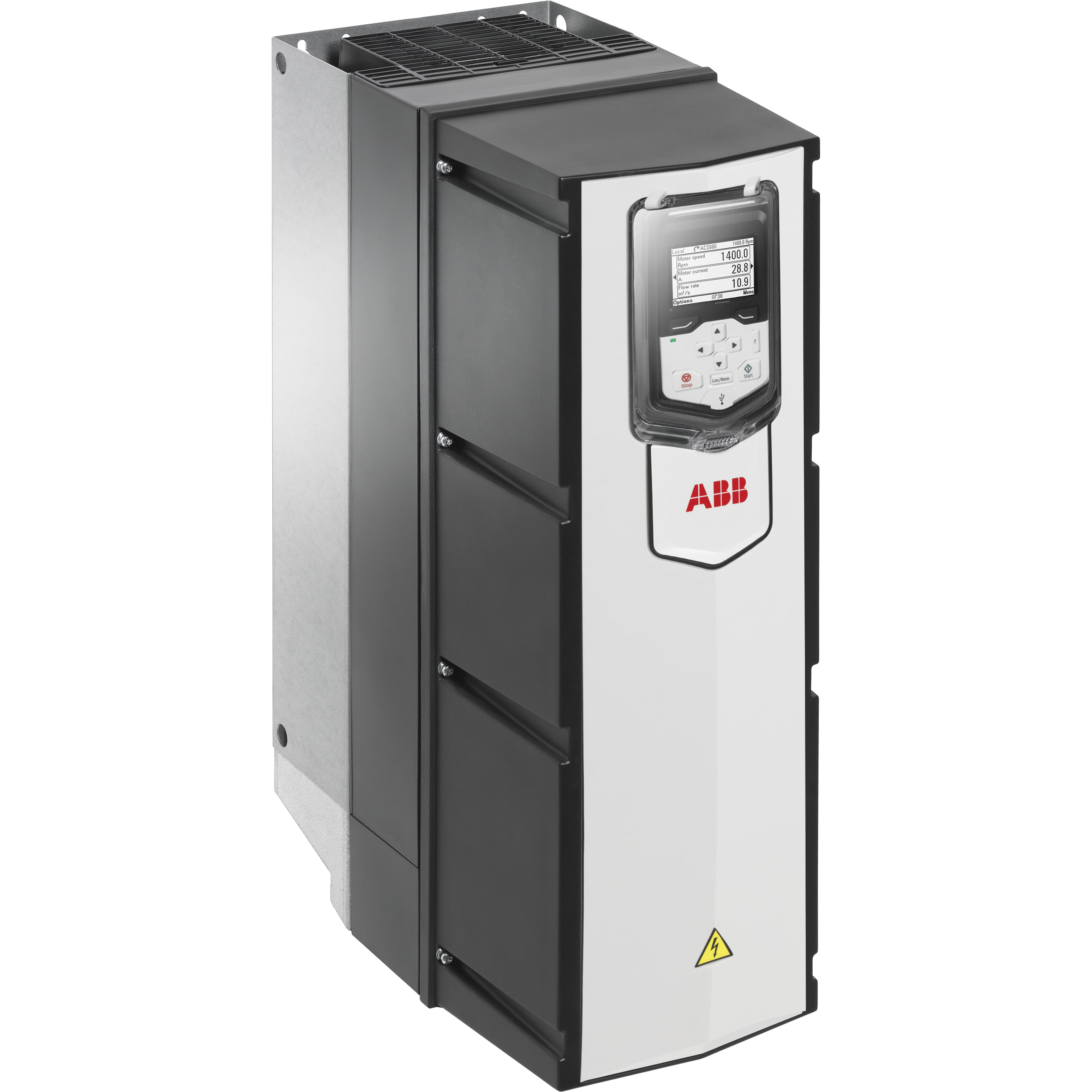

VSD ACS880 4KW 9.4A IP55 WITH BLUETOOTH CONTROL PANEL ACS880-01-09A4-3+B056+E200+P90

Product Code: 88001009510

  • Industrial-grade ACS880 series drive
  • Rated for 380-415 VAC, 8 A current
  • IP55 protection for harsh environments
  • Compact wall mount design
  • CE, EMC, ATEX & more approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 415V
Normal Duty Amps
9.4A
Normal Duty kW
4kW
Heavy Duty Amps
7.2A
Heavy Duty kW
3kW

Mechanical

Frame Size
R2
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
226mm
Height
409mm
Weight
7kg
Width
155mm

Environmental

Operating Temperature
Maximum 40°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
