Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800S-UC
Application Commercial and industrial

No. of Poles (Total) 4	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 1500V
Power Loss 25.6W	Rated Current (In) 80A	Rated Frequency 0Hz
Trip Curve UC-B	Terminal Type Screw Terminals	Electrical Life 1500
Mechanical Life 10000

Conductor Cross Section Flexible

0mm² to 50mm²

Conductor Cross Section Solid Core

0mm² to 70mm²

Housing Material

Material group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.98kg
Width 106mm	Width in No. of Modular Spacing 6	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -40°C to 70°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC

(750V DC) 50kA

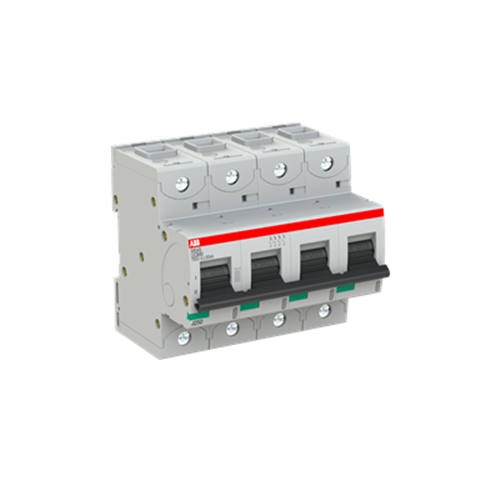

ABB 80A 4P Miniature Circuit Breaker B CURVE 50 kA HIGH-PERFORMANCE 6MOD S804S-UCB80
