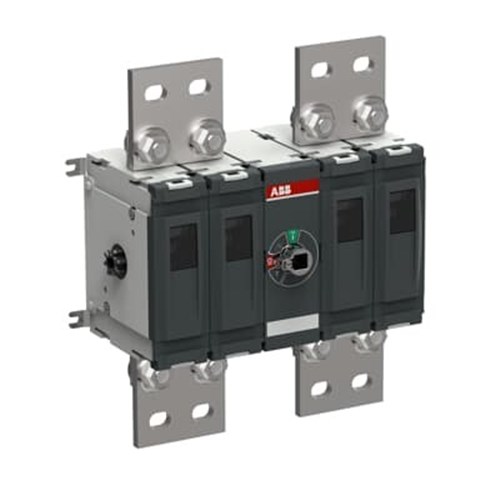

ABB 630A 4P DISCONNECOR OTDC630FV22-PV2

Product Code: OTDC630FV22-PV2

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switch - Disconnector
Brand
ABB
Series
OTDC
Application
Solar energy, utilities, industrial automation

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
10000A
Power Loss
120W to 128W
Special Functions
No
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
135mm
Height
211mm
Weight
10kg
Width
255.5mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3, CCC, CE, UKCA, DNV GL

Documents

IPD Product Catalogue V17
