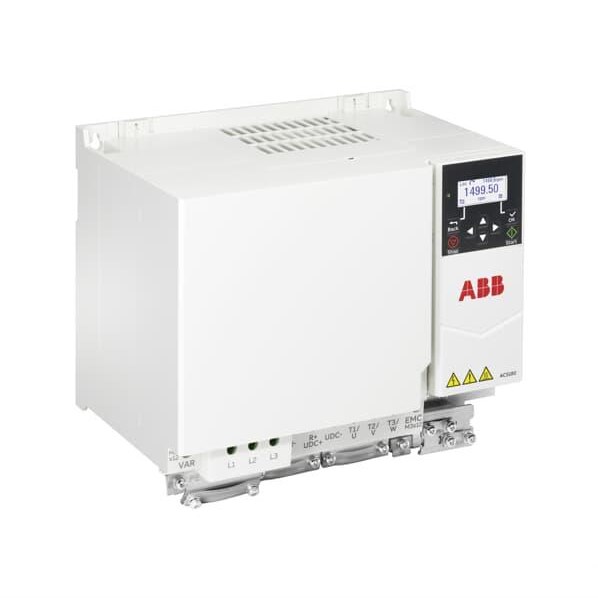

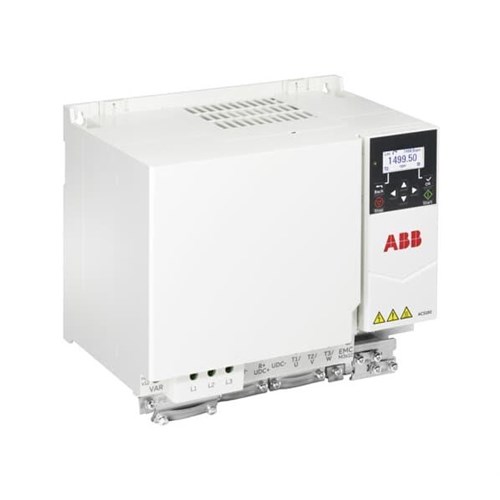

VSD ACS180 18.5KW 38A IP20 WITH INBUILT CONTROL PANEL ABB ACS180-04S-038A-4

Product Code: 3AXD50000814497

  • Operates at 480 VAC, 32 A for efficient performance
  • Compact size: 260x240x179 mm for easy installation
  • IP20 protection ensures safe indoor use
  • Equipped with control element and PC connection
  • Delivers 18.5 kW power within R4 frame size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Machinery Drives
Brand
ABB

Electrical

No. Of Input Phases
3-phase
Nominal Input Voltage
380 ... 480 V
Normal Duty Amps
38.0 A
Normal Duty kW
18.5 kW
Heavy Duty Amps
32.0 A
Heavy Duty kW
15 kW

Mechanical

Frame Size
R4

Dimensions

Depth
178.6 mm
Height
240 mm
Weight
5.3 kg
Width
260 mm

Environmental

Operating Temperature
Maximum 40 °C
IP Rating
IP20

Standards and Approvals

Standards and Approvals
UNSPSC: 39122001

Hardware Properties

Control Panel (Keypad)
Yes
