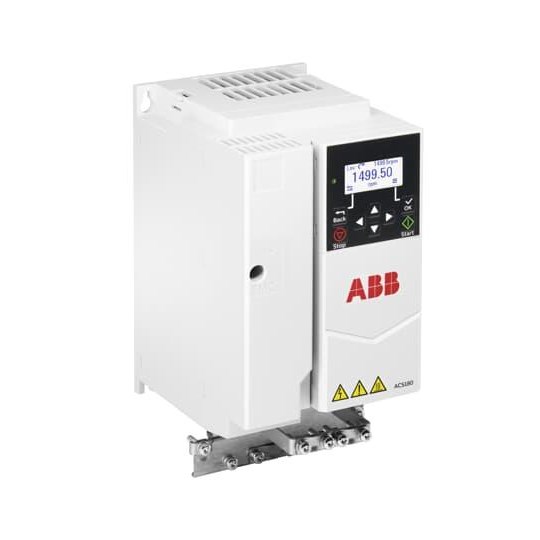

ABB 3AXD50000814077 Variable Speed Machinary Drive W/ CP 5.5kW 9.4A IP20 3PH

Product Code: 3AXD50000814077

  • Operates at 480 VAC, 9.4 A
  • Compact size: 120x230x143 mm
  • IP20 protection rating
  • Includes control element & PC connection
  • Rated power of 5.5 kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Variable speed drive
Brand
ABB
Series
ACS180

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
12.6 A
Rated Power
5.5 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Cabinet mounted

Dimensions

Depth
143 mm
Height
230 mm
Width
120 mm

Environmental

IP Rating
IP20
Ambient Temperatures
-10 ... +50 °C

Standards and Approvals

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
