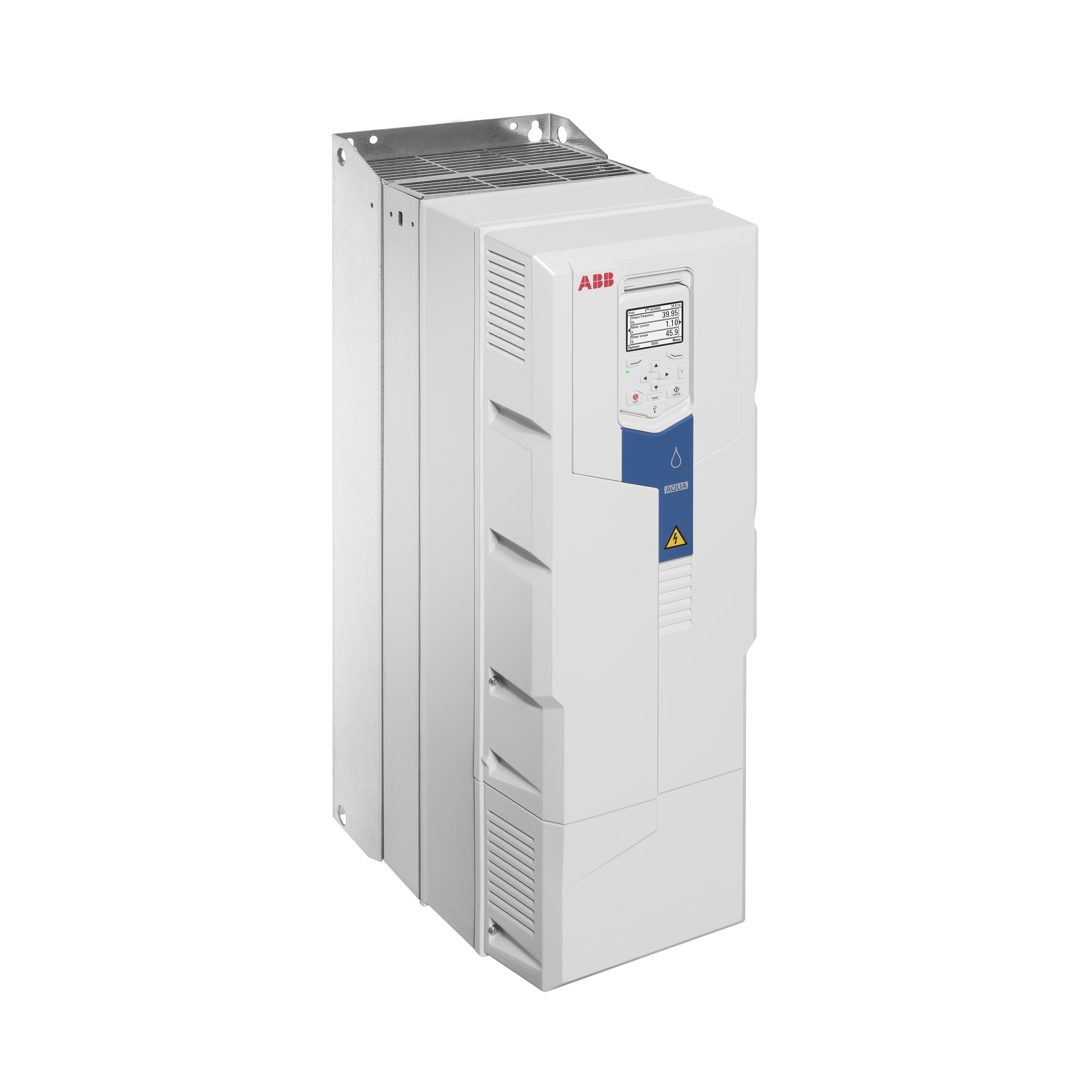

VSD WATER ACQ580 22KW 46A IP21 ULTRA LOW HARMONIC DRIVE ABB ACQ580-31-046A-4+J429

Product Code: 3AXD50000428779_S

  • Handles up to 46A current
  • Supports power up to 22kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Water & Wastewater Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
45A
Normal Duty kW
22kW
Heavy Duty Amps
38A
Heavy Duty kW
18.5kW

Mechanical

Frame Size
R6
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
392mm
Height
771mm
Weight
52kg
Width
252mm

Environmental

Operating Temperature
Maximum 50°C Minimum -15°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
