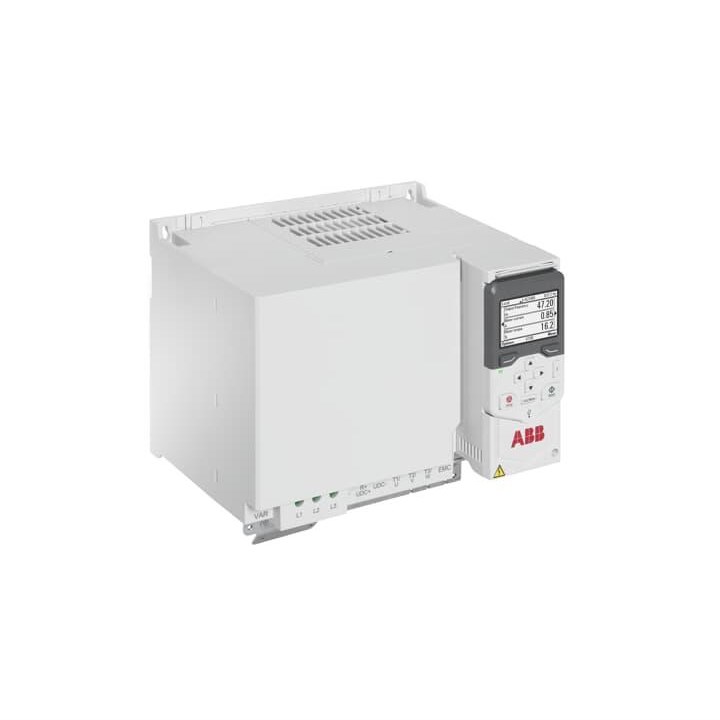

ABB 3AXD50000199099 Wall Mount General Purpose Drive W/ CP 22kW 50A IP20 3PH

Product Code: 3AXD50000199099

  • Supports 380-480 VAC, 50 A
  • IP20 protection rating
  • Compact size: 262x240x213 mm
  • Includes control element & PC connection
  • Rated power of 22 kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable speed drive
Brand
ABB
Series
ACS480

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
50 A
Rated Power
22 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Cabinet mounted

Dimensions & Physical Data

Depth
213 mm
Height
240 mm
Width
262 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 ... +50 °C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
