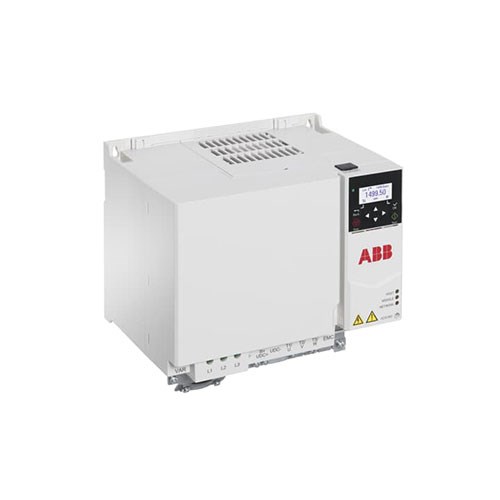

VSD ACS380 22KW 45A IP20 WITH INBUILT CONTROL PANEL ABB ACS380-040S-045A-4

Product Code: 3AXD50000162215_S

  • Compact ACS380 series machinery drive
  • Operates at 380-480 VAC, 38 A
  • IP20 protection rating for safety
  • Includes control unit & PC connection
  • Delivers 22 kW power output
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
45A
Normal Duty kW
22kW
Heavy Duty Amps
38A
Heavy Duty kW
18.5kW

Mechanical

Frame Size
R4
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
176mm
Height
240mm
Weight
5.3kg
Width
260mm

Environmental

Operating Temperature
Maximum 50°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
