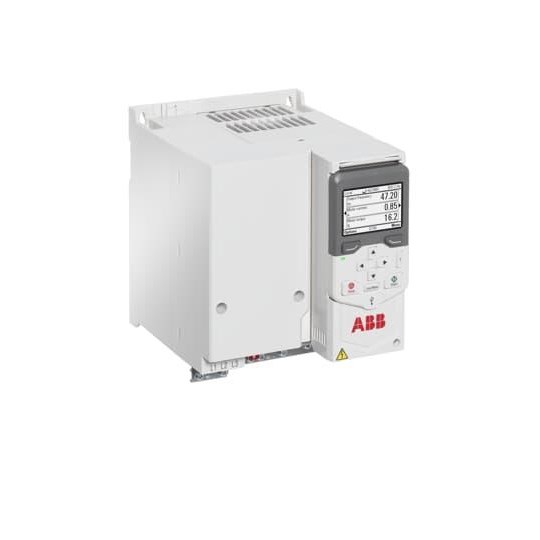

ABB 3AXD50000047793 Wall Mount General Purpose Drive W/ CP 11kW 25A IP21 3PH

Product Code: 3AXD50000047793

  • Operates at 380-480 VAC, 25 A
  • Supports up to 500 Hz frequency
  • Compact size: 172x220x208 mm
  • Wall mountable with IP21 protection
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACS480

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
26A
Rated Power
11000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Cabinet mounted

Dimensions & Physical Data

Depth
208mm
Height
220mm
Width
172mm

Environmental

IP Rating
IP20
Ambient Temperature
-10°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
