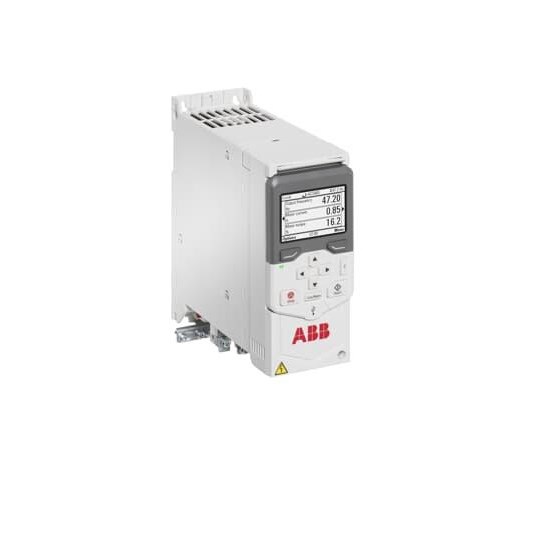

ABB 3AXD50000047769 Wall Mount General Purpose Drive W/ CP 3kW 7.2A IP21 3PH

Product Code: 3AXD50000047769

  • Suitable for 380-480 VAC systems
  • Compact size: 73x223x208 mm
  • Wall-mounted design
  • IP21 protection rating
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable speed drive
Brand
ABB
Series
ACS480

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
7.3 A
Rated Power
3 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Cabinet mounted

Dimensions & Physical Data

Depth
208 mm
Height
223 mm
Width
73 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 ... +50 °C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
