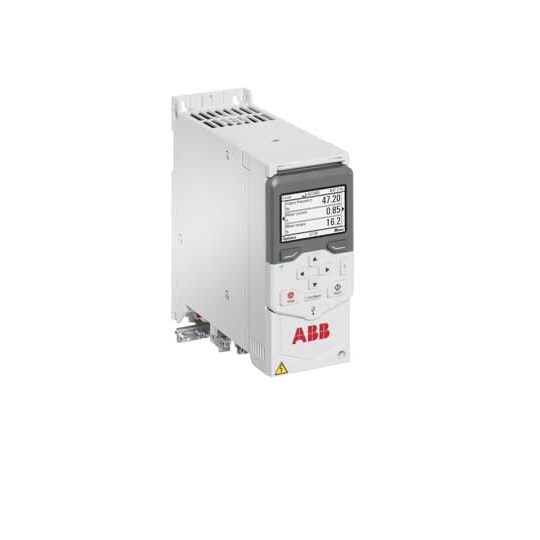

ABB 3AXD50000047768 Wall Mount General Purpose Drive W/ CP 2.2kW 5.6A IP21 3PH

Product Code: 3AXD50000047768

  • Voltage range: 380-480 VAC
  • Current rating: 5.6 A
  • Power output: 2.2 kW
  • IP21 protection for indoor use
  • Wall-mounted design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable speed drive
Brand
ABB
Series
ACS480

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
5.7 A
Rated Power
2.2 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Cabinet mounted

Dimensions & Physical Data

Depth
208 mm
Height
223 mm
Width
73 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 ... +50 °C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
