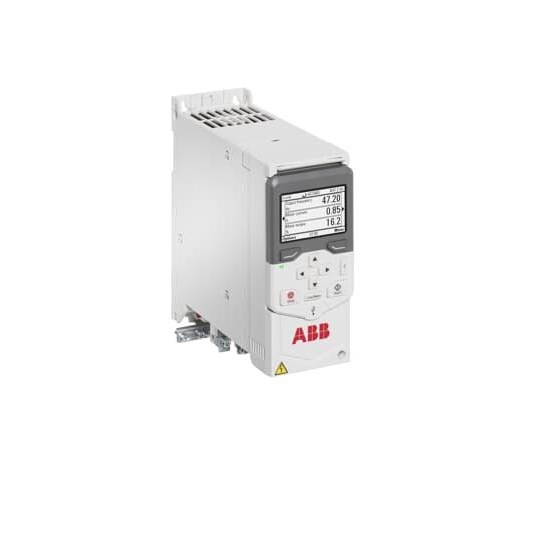

ABB 3AXD50000047767 Wall Mount General Purpose Drive W/ CP 1.5kW 4A IP21 3PH

Product Code: 3AXD50000047767

  • Suitable for 380-480 VAC systems
  • Compact design: 73x223x208 mm
  • Wall-mounted with IP21 protection
  • Rated power of 1.5 kW, current at 4 A
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable speed drive
Brand
ABB
Series
ACS480

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
4.1 A
Rated Power
1.5 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Cabinet mounted

Dimensions & Physical Data

Depth
208 mm
Height
223 mm
Width
73 mm

Environmental

IP Rating
IP20
Ambient Temperature
-10 ... +50 °C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

Documents

IPD Product Catalogue V17
