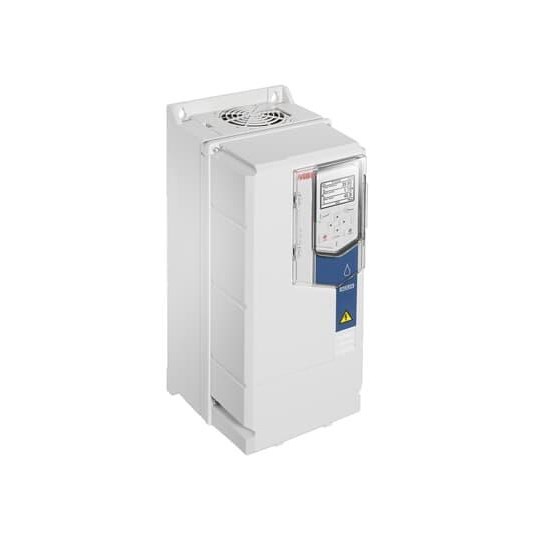

ABB 3AXD50000039048 Wall Mount Water Drive W/ Bluetooth CP 22kW 45A IP55 3PH

Product Code: 3AXD50000039048

  • Designed for water & wastewater applications
  • Supports multiple comms: CAN, Modbus, Profibus, etc.
  • Wall-mounted with IP21 protection
  • Compact size: 206mm(W) x 490mm(H) x 237mm(D)
  • Rated power of 22 kW with a current of 45 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
46A
Rated Power
22000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
237mm
Height
490mm
Width
206mm

Environmental

IP Rating
IP55
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
