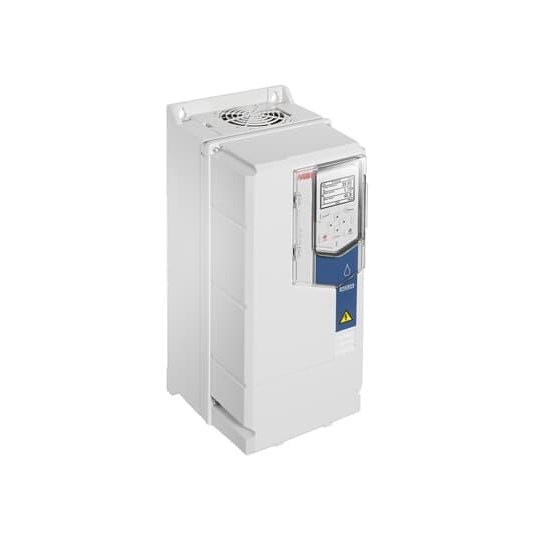

ABB 3AXD50000039046 Wall Mount Water Drive W/ Bluetooth CP 15kW 32A IP55 3PH

Product Code: 3AXD50000039046

  • Suitable for 380-480 V, 32 A systems
  • IP55 protection with NEMA 12 enclosure
  • Wall-mounted design, compact size
  • Includes control unit & PC connection
  • High efficiency rated IE2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Water & Wastewater Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
32A
Normal Duty kW
15kW
Heavy Duty Amps
24.6A
Heavy Duty kW
11kW

Mechanical

Frame Size
R3
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
237mm
Height
490mm
Weight
13kg
Width
206mm

Environmental

Operating Temperature
Maximum 40°C Minimum -15°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
