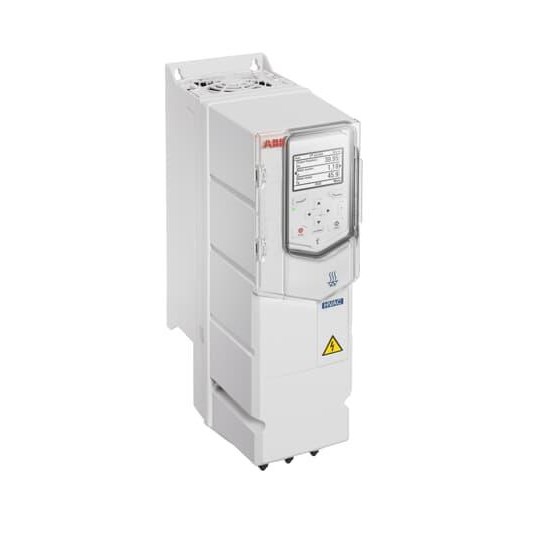

ABB 3AXD50000038999 Wall Mount HVAC Drive 1.1kW 3.3A IP55 3PH

Product Code: 3AXD50000038999

  • Suitable for 380-480 VAC systems
  • IP55 rated for dust and water protection
  • Compact design: 128mm x 403mm x 233mm
  • Includes control element & PC connection
  • Ideal for industrial, commercial & domestic use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
3.3A
Rated Power
1100W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
233mm
Height
403mm
Width
128mm

Environmental

IP Rating
IP55
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
