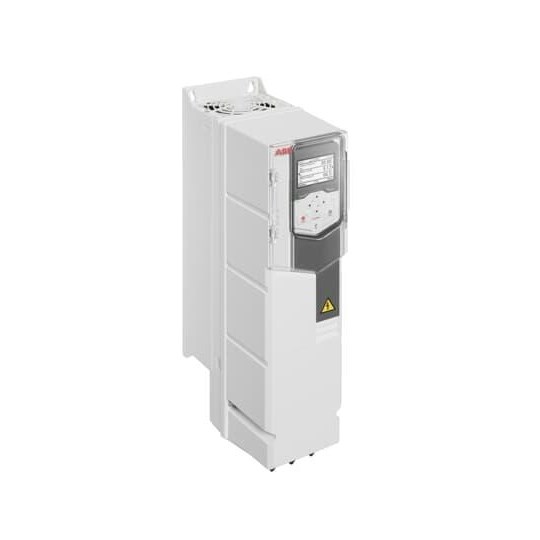

ABB 3AXD50000038977 Wall Mount General Purpose Drive W/ CP 11kW 25A IP55 3PH

Product Code: 3AXD50000038977

  • Operates on 380-480 VAC
  • Rated power of 11 kW
  • Wall-mounted design
  • IP21 protection rating
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
26A
Rated Power
11000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
239mm
Height
503mm
Width
128mm

Environmental

IP Rating
IP55
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
