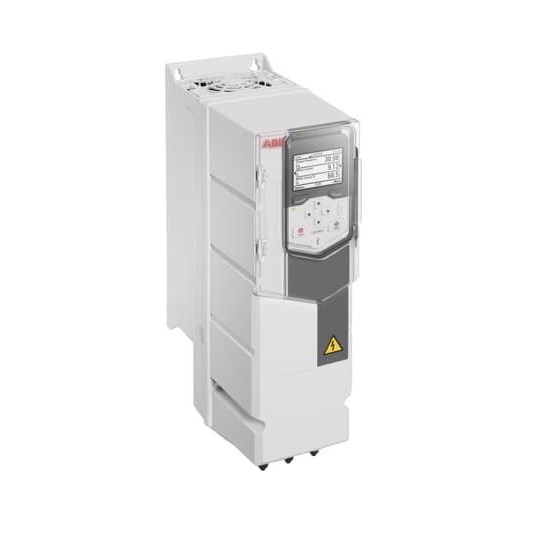

VSD ACS580 1.1KW 3.4A IP55 COMES WITH CONTROL PANEL ABB ACS580-01-03A4-4+B056+J400

Product Code: 3AXD50000038965

  • Versatile ACS580 series for general use
  • Operates at 380-480 VAC, 3.3 A
  • Compact design: 125x373x223 mm
  • Wall-mounted with IP21 protection
  • Features control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
3.3A
Normal Duty kW
1.1kW
Heavy Duty Amps
2.6A
Heavy Duty kW
0.8kW

Mechanical

Frame Size
R1
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
233mm
Height
403mm
Weight
4.8kg
Width
128mm

Environmental

Operating Temperature
Maximum 50°C; Minimum -15°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
