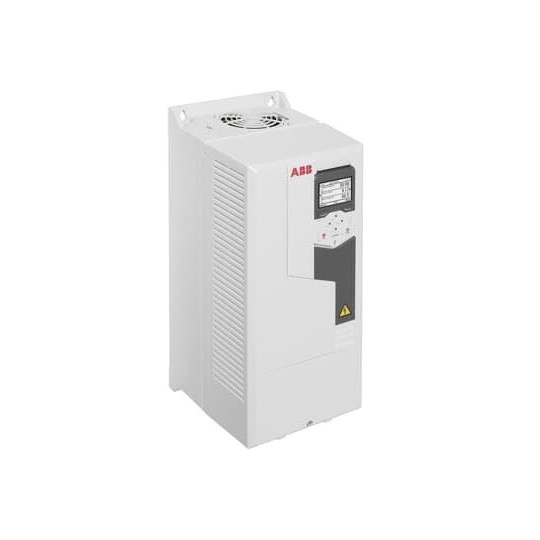

ABB 3AXD50000038963 Wall Mount General Purpose Drive W/ CP 22kW 45A IP21 3PH

Product Code: 3AXD50000038963

  • Suitable for 380-480 VAC systems
  • Handles up to 45 A current
  • Compact design: 203x490x229 mm
  • IP21 protection rating
  • Wall mountable with control element
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
46A
Rated Power
22000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
229mm
Height
490mm
Width
203mm

Environmental

IP Rating
IP21
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
