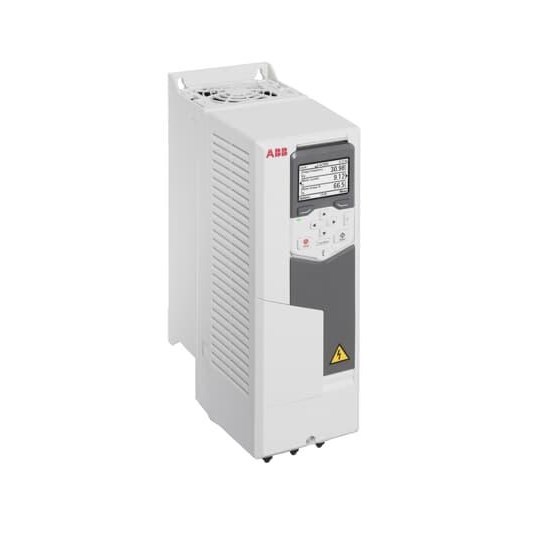

ABB 3AXD50000038952 Wall Mount General Purpose Drive W/ CP 4kW 9.4A IP21 3PH

Product Code: 3AXD50000038952

  • Operates at 380-480 VAC, 9.4 A
  • Supports up to 500 Hz frequency
  • Compact wall-mounted design
  • IP21 protection rating
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
9.5A
Rated Power
4000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
223mm
Height
373mm
Width
125mm

Environmental

IP Rating
IP21
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

Documents

IPD Product Catalogue V17
