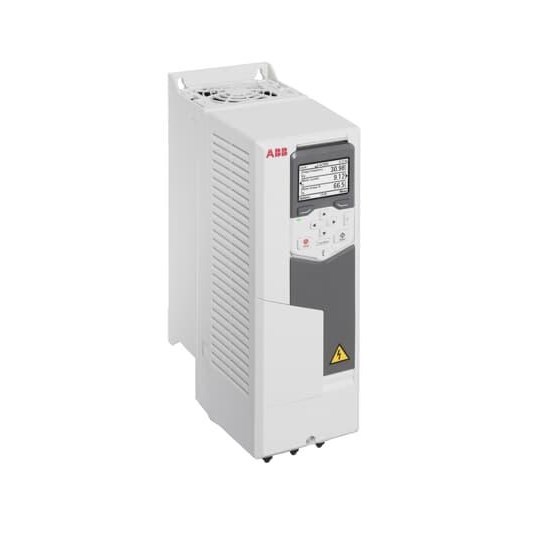

VSD ACS580 2.2KW 5.7A IP21 COMES WITH CONTROL PANEL ABB ACS580-01-05A7-4+J400

Product Code: 3AXD50000038940

  • Operates at 380-480 VAC, 5.6 A
  • IP21-rated for reliable protection
  • Wall mountable design
  • Compact size: 125x373x223 mm
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380 ... 480 V
Normal Duty Amps
5.7 A
Normal Duty kW
2.2 kW
Heavy Duty Amps
4.0 A
Heavy Duty kW
1.5 kW

Mechanical

Frame Size
R1
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
223 mm
Height
373 mm
Weight
4.6 kg
Width
125 mm

Environmental

Operating Temperature
Maximum 40 °C; Minimum -15 °C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
