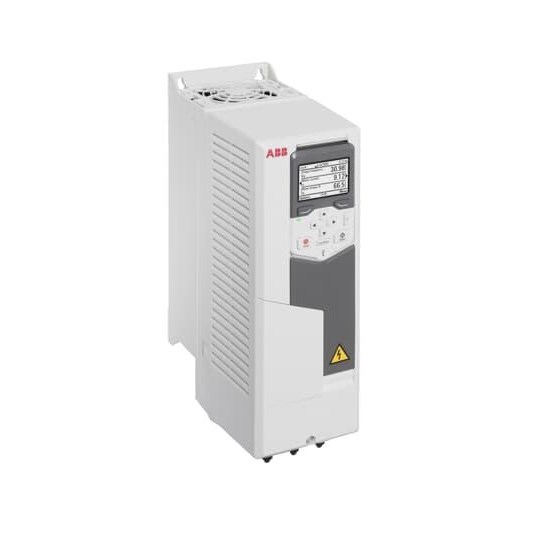

VSD ACS580 1.5KW 4.1A IP21 COMES WITH CONTROL PANEL ABB ACS580-01-04A1-4+J400

Product Code: 3AXD50000038939

  • Operates at 380-480 VAC with 4 A current
  • IP21 protection for safe indoor use
  • Compact design: 125 mm x 373 mm x 223 mm
  • Includes control element & PC connection
  • Wall-mounted for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380 ... 480 V
Normal Duty Amps
4.0 A
Normal Duty kW
1.5 kW
Heavy Duty Amps
3.3 A
Heavy Duty kW
1.1 kW

Mechanical

Frame Size
R1
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
223 mm
Height
373 mm
Weight
4.6 kg
Width
125 mm

Environmental

Operating Temperature
Maximum 40 °C; Minimum -15 °C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001
