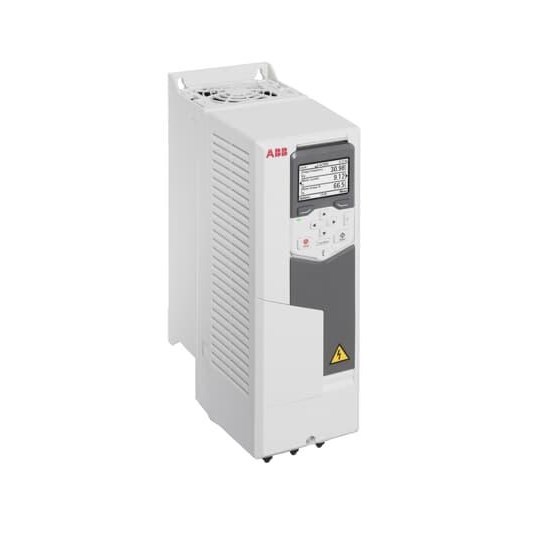

VSD ACS580 0.75KW 2.7A IP21 COMES WITH CONTROL PANEL ABB ACS580-01-02A7-4+J400

Product Code: 3AXD50000038937

  • 380-480 VAC, 2.6 A rated voltage and current
  • Compact dimensions: W125 x H373 x D223 mm
  • IP21 protection for wall mounting
  • Includes control element & PC connection
  • Suitable for general-purpose applications
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
2.6A
Normal Duty kW
0.75kW
Heavy Duty Amps
1.8A
Heavy Duty kW
0.6kW

Mechanical

Frame Size
R1
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
223mm
Height
373mm
Weight
4.6kg
Width
125mm

Environmental

Operating Temperature
Maximum 40°C; Minimum -15°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
