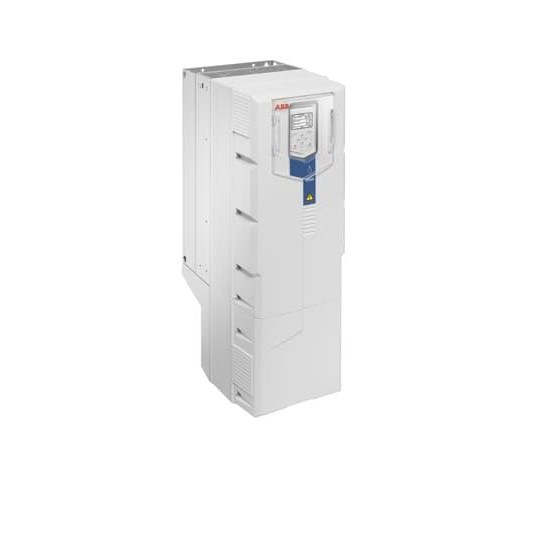

ABB 3AXD50000034627 Wall Mount Water Drive W/ Bluetooth CP 90kW 169A IP55 3PH

Product Code: 3AXD50000034627

  • Supports multiple communication protocols
  • Compact design with 284 mm width
  • Wall-mount for easy installation
  • IP21 protection for indoor use
  • Rated power of 90 kW
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACQ580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
169A
Rated Power
90000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
381mm
Height
880mm
Width
284mm

Environmental

IP Rating
IP55
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
