Products

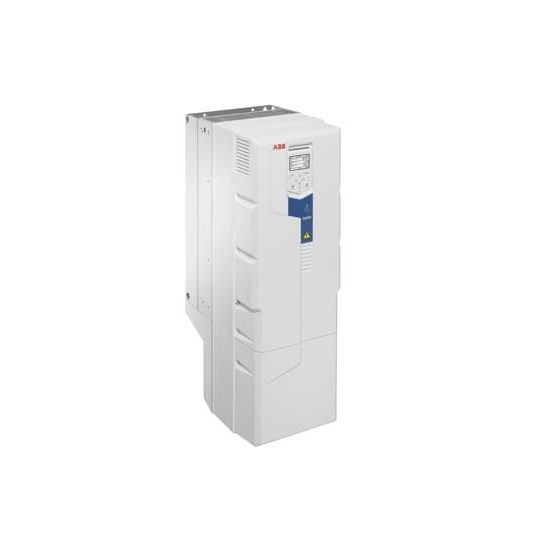

VSD WATER ACQ580 110KW 206A IP21 WITH BLUETOOTH PANEL ABB ACQ580-01-206A-4+J429

Product Code: 3AXD50000034605

  • Supports multiple communication protocols
  • Compact wall-mounted design
  • IP21 protection for indoor use
  • Rated power of 110 kW
  • Includes control element and PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Water & Wastewater Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
206A
Normal Duty kW
110kW
Heavy Duty Amps
169A
Heavy Duty kW
90kW

Mechanical

Frame Size
R7
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
370mm
Height
880mm
Weight
54kg
Width
284mm

Environmental

Operating Temperature
Maximum 40°C Minimum -15°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
