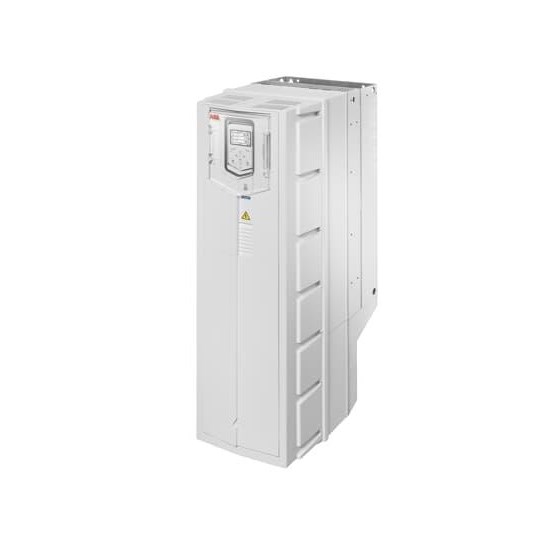

VSD HVAC ACH580 250KW 430A IP55 COMES WITH CONTROL PANEL ABB ACH580-01-430A-4+B056+J400

Product Code: 3AUA0000083610

  • Suitable for 380-480 VAC systems
  • Operates at up to 500 Hz frequency
  • IP55-rated for dust and water protection
  • Wall-mounted, compact design
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Hvacr Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
430A
Normal Duty kW
250kW
Heavy Duty Amps
363A
Heavy Duty kW
200kW

Mechanical

Frame Size
R9
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
477mm
Height
955mm
Weight
103kg
Width
380mm

Environmental

Operating Temperature
Maximum 40°C Minimum -15°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
UNSPSC:39122001
