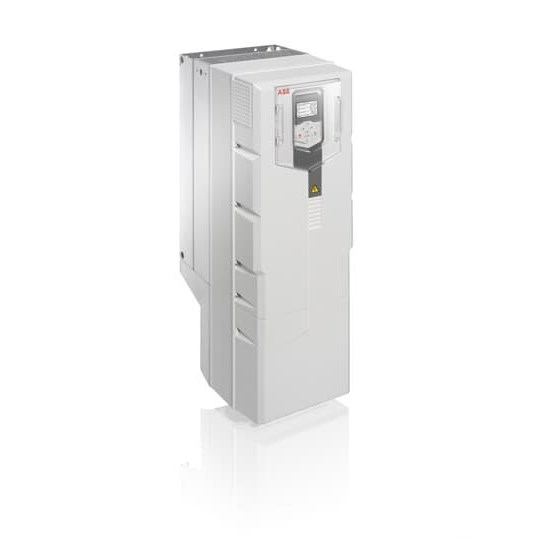

ABB 3AUA0000083581 General Purpose Drive W/ CP 110kW 206A IP55 3PH

Product Code: 3AUA0000083581

  • Suitable for 380-480 VAC systems
  • Handles up to 206 A current
  • IP55-rated for dust and water protection
  • Compact wall-mounted design
  • Includes control element & PC connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACS580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
206A
Rated Power
110000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
381mm
Height
880mm
Width
284mm

Environmental

IP Rating
IP55
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL
