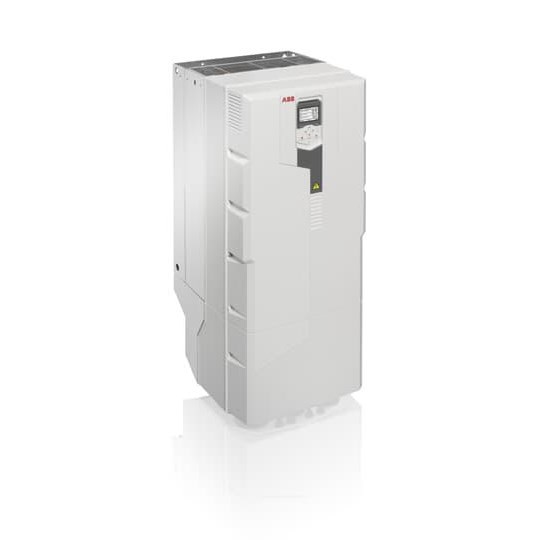

VSD ACS580 200KW 363A IP21 COMES WITH CONTROL PANEL ABB ACS580-01-363A-4+J400

Product Code: 3AUA0000080509

  • Suitable for 380-480 VAC, 363 A applications
  • IP21 protection for indoor use
  • Wall-mounted design saves space
  • Compact size: 380 x 955 x 418 mm
  • Delivers up to 200 kW power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
363A
Normal Duty kW
200kW
Heavy Duty Amps
293A
Heavy Duty kW
160kW

Mechanical

Frame Size
R9
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
418mm
Height
955mm
Weight
97kg
Width
380mm

Environmental

Operating Temperature
Maximum 40°C; Minimum -15°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
