Products

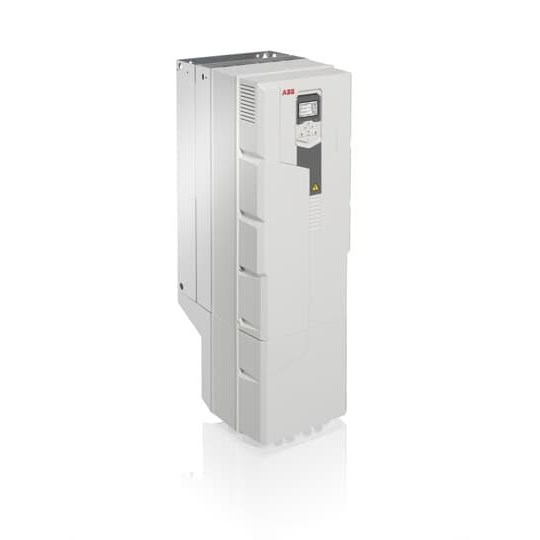

VSD ACS580 132KW 246A IP21 COMES WITH CONTROL PANEL ABB ACS580-01-246A-4+J400

Product Code: 3AUA0000080507

  • Suitable for 380-480 VAC systems
  • Handles up to 246 A current
  • IP21 protection rating
  • Wall-mounted design
  • Delivers 132 kW power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Machinery Drives
Brand
ABB

Electrical

No. of Input Phases
3-phase
Nominal Input Voltage
380V to 480V
Normal Duty Amps
246A
Normal Duty kW
132kW
Heavy Duty Amps
206A
Heavy Duty kW
110kW

Mechanical

Frame Size
R8
Control Panel (Keypad)
Yes

Dimensions & Physical Data

Depth
393mm
Height
965mm
Weight
69kg
Width
300mm

Environmental

Operating Temperature
Maximum 40°C; Minimum -15°C
IP Rating
IP21

Safety, Standards & Compliance

Standards and Approvals
UNSPSC: 39122001

Documents

IPD Product Catalogue V17
