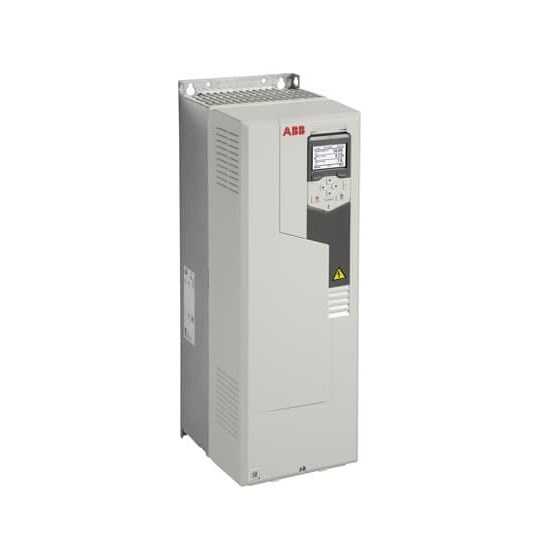

ABB 3AUA0000080499 General Purpose Drive W/ CP 37kW 73A IP21 3PH

Product Code: 3AUA0000080499

  • Operates at 380-480 VAC, 73 A
  • Wall-mounted design, IP21 protection
  • Compact size: 203x636x257 mm
  • Supports up to 37 kW power output
  • Includes two hardware interfaces
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable Speed Drive
Brand
ABB
Series
ACS580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current (In)
73A
Rated Power
37000W
Rated Voltage (Ur)
3-phase 380 ... 480V AC

Mechanical

Mounting
Wall mounted

Dimensions & Physical Data

Depth
257mm
Height
636mm
Width
203mm

Environmental

IP Rating
IP21
Ambient Temperature
-15°C to 50°C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

Documents

IPD Product Catalogue V17
