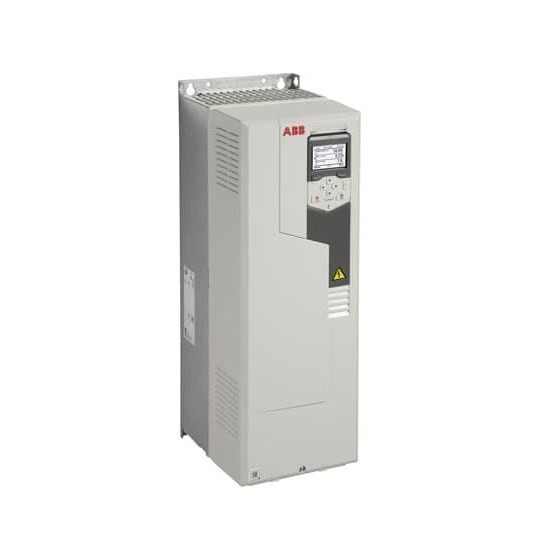

ABB 3AUA0000080498 General Purpose Drive W/ CP 30kW 62A IP21 3PH

Product Code: 3AUA0000080498

  • Suitable for 380-480 VAC systems
  • Handles up to 62 A current
  • Wall-mounted, IP21 protection
  • Compact size: 203x636x257 mm
  • Delivers 30 kW power
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Variable speed drive
Brand
ABB
Series
ACS580

Electrical

No. of Analog Inputs
2
No. of Phases
3-phase input / 3-phase output
Rated Current
62 A
Rated Power
30 kW
Rated Voltage
3-phase 380 ... 480 V AC

Mechanical

Mounting Type
Wall mounted

Dimensions & Physical Data

Depth
257 mm
Height
636 mm
Width
203 mm

Environmental

IP Rating
IP21
Ambient Temperature
-15 ... +50 °C

Safety, Standards & Compliance

Standards and Approvals
CE; EN 61800-5-1; EN 61800-5-2; EN 61800-3; RoHS; UL; cUL

Documents

IPD Product Catalogue V17
