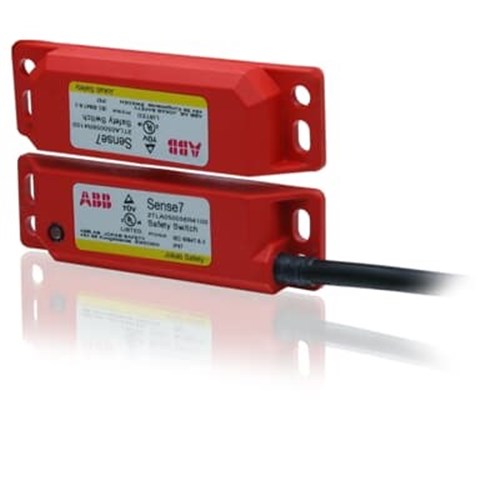

ABB 2TLA050056R6100 Safety Magnetic Switch 2NC+1NO 10m Cable

Product Code: 2TLA050056R6100

  • Operates on 24 VDC, 1 mA current
  • Features 2NC+1NO contact config
  • Durable polyester housing
  • IP67 & IP69K protection rated
  • Withstands -25 to 50°C temps
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Magnetic Switch
Brand
ABB
Series
Sense7

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Contact Configuration
2 NC + 1 NO
Rated Current (In)
0.2 A
Rated Voltage (Ur)
24 V DC

Mechanical

Actuator Type
Coded magnetic actuator
Housing Colour
Red
Housing Material
UL-approved polyester
Material
UL-approved polyester
Actuator Included
Yes

Dimensions & Physical Data

Depth
13 mm
Height
88 mm
Weight
0.565 kg
Width
50 mm

Environmental

IP Rating
IP67, IP69K
Ambient Temperature
-25 °C to +80 °C
