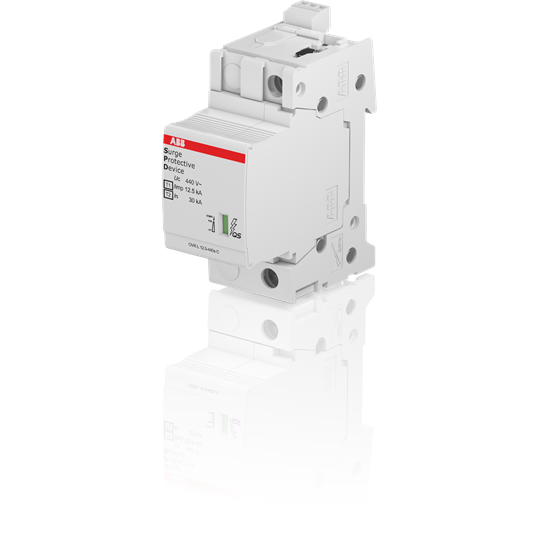

ABB 2CTB815710R2900 Surge Protective Device 12.5kA 1-P 80kA 400/690V Plug-In IP20

Product Code: 2CTB815710R2900

  • Rated for 400/690 V, 80 kA current
  • Plug-in connection for easy installation
  • IP20 protection rating ensures safety
  • Compact design: 35.6mm wide, fits DIN rail
  • Protects systems from transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
160A gG
Nominal Voltage
400V AC, 690V AC
Voltage Protection Level Up
1900V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
440 V

Dimensions & Physical Data

Depth
76.7mm
Height
95.8mm
Width
35.6mm
No. of Modules Width
2

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
