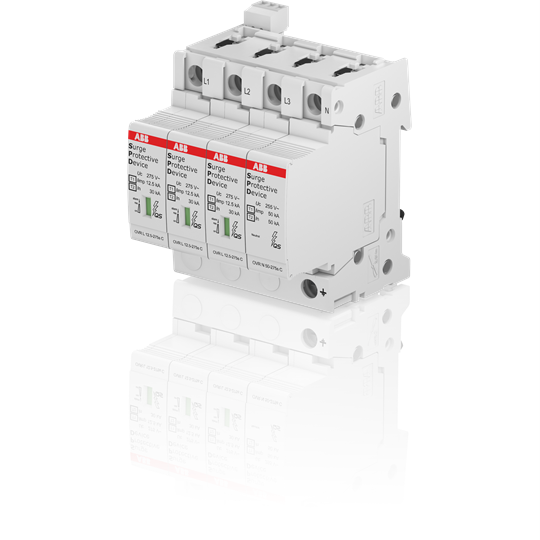

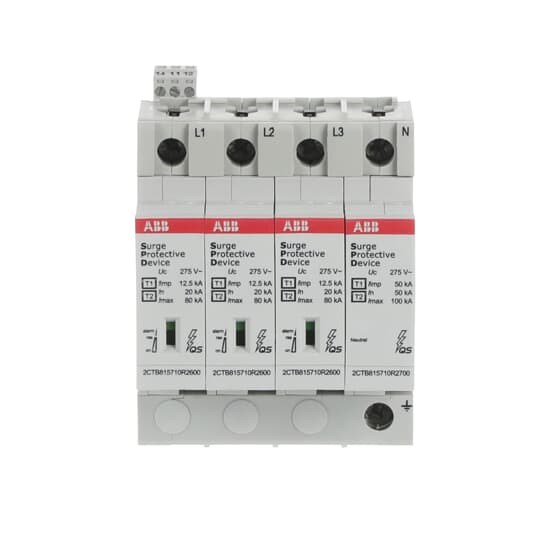

ABB 2CTB815710R0700 Surge Protective Device 12.5kA 4-P 80kA 230/400V Plug-In IP20

Product Code: 2CTB815710R0700

  • Surge protection for 230/400 V systems
  • Handles up to 80 kA current
  • Plug-in connection for easy setup
  • DIN Rail mounting for secure installation
  • Protects against transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
160A gG
Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1.4kV, 1.5kV
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
4P
Max. Continuous Operating Voltage
255 V, 275 V, 440 V

Dimensions & Physical Data

Depth
76.7mm
Height
95.8mm
Width
71.2mm
No. of Modules Width
4

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
