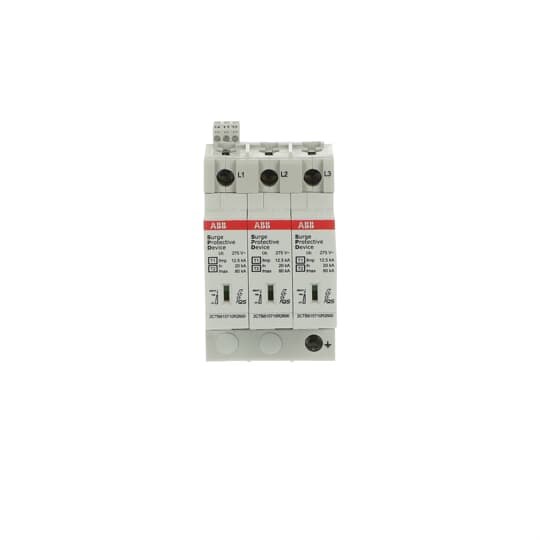

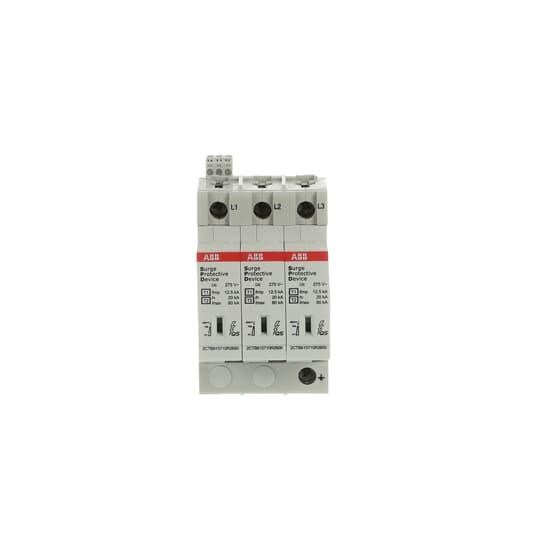

ABB 2CTB815710R0600 Surge Protective Device 12.5kA 3-P 80kA 230/400V Plug-In IP20

Product Code: 2CTB815710R0600

  • Handles high surge current up to 80 kA
  • Plug-in connection for easy installation
  • Compact DIN rail mounting design
  • Protects systems from transient overvoltage
  • IP20 rated for solid object protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
160A gG
Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
3P
Max. Continuous Operating Voltage
275 V, 440 V

Dimensions & Physical Data

Depth
76.7mm
Height
95.8mm
Width
53.4mm
No. of Modules Width
3

Environmental

IP Rating
IP20
