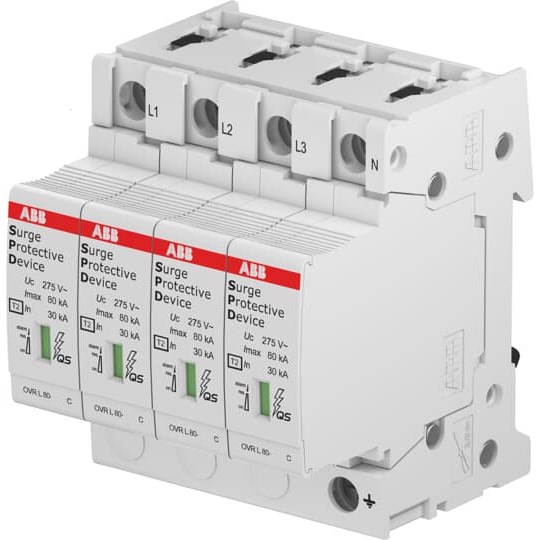

ABB 2CTB815708R3700 Surge Protective Device 6.25kA 4-P 80kA 400VAC Plug-In IP20

Product Code: 2CTB815708R3700

  • Surge protection for 400 VAC systems
  • High current capacity of 80 kA
  • Plug-in connection for easy installation
  • DIN rail mounting with IP20 protection
  • Compact size: 71.2 mm width, 95.8 mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
400V AC, 690V AC
Voltage Protection Level Up
1.4kV, 1.8kV, 2kV
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
4P
Max. Continuous Operating Voltage
440 V

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
76.7mm
Height
95.8mm
Width
71.2mm
No. of Modules Width
4

Environmental

IP Rating
IP20
