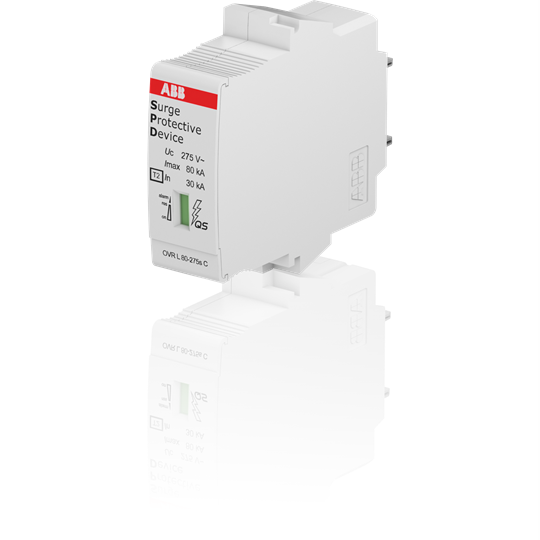

ABB 2CTB815708R2600 Surge Protective Device 2kA 1-P 80kA 230VAC Plug-In IP20

Product Code: 2CTB815708R2600

  • 230 VAC surge protection with 80 kA current rating
  • Compact design: 17.6mm wide, DIN rail mountable
  • IP20 protection for indoor use
  • Plug-in connection for easy installation
  • Protects systems from transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
67mm
Height
57mm
Width
17.6mm
No. of Modules Width
1

Environmental

IP Rating
IP20
