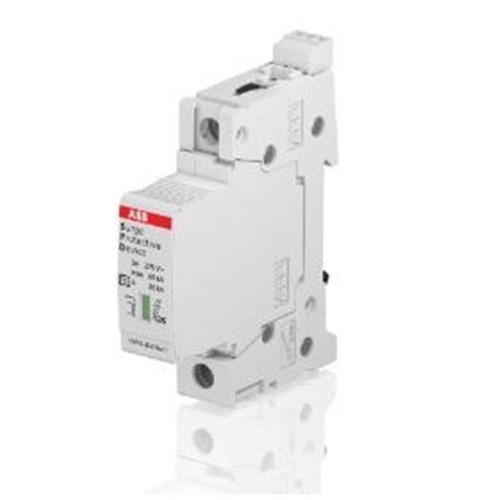

ABB 2CTB815708R0000 Surge Arrester 6.25kA 1-P 80kA 230VAC Plug-In IP20

Product Code: 2CTB815708R0000

  • Rated for 230 VAC and 80 kA current
  • Plug-in connection, DIN rail mountable
  • Compact size: 17.8mm width, 95.8mm height
  • IP20 protection against solid objects
  • Protects systems from transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
76.7mm
Height
95.8mm
Width
17.8mm
No. of Modules Width
1

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
