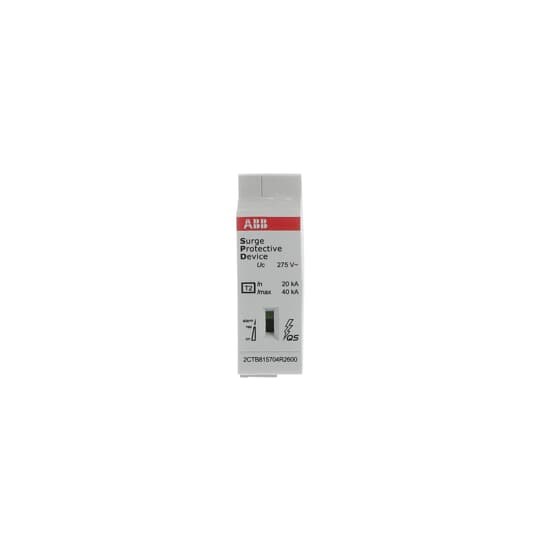

ABB 2CTB815704R2600 Surge Protective Device 2kA 1-P 40kA 230VAC Plug-In IP20

Product Code: 2CTB815704R2600

  • Protects systems from transient overvoltage
  • Rated for 230 VAC and 40 kA current
  • Plug-in connection, easy installation
  • Compact DIN rail mount, IP20 protection
  • Handles lightning impulse current up to 2 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
67mm
Height
57mm
Width
17.6mm
No. of Modules Width
1

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
