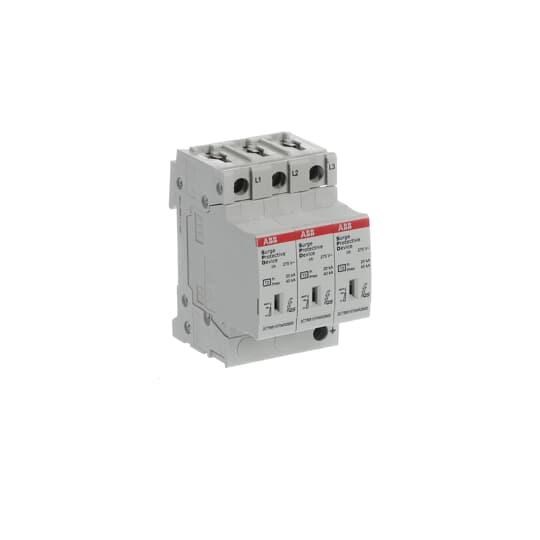

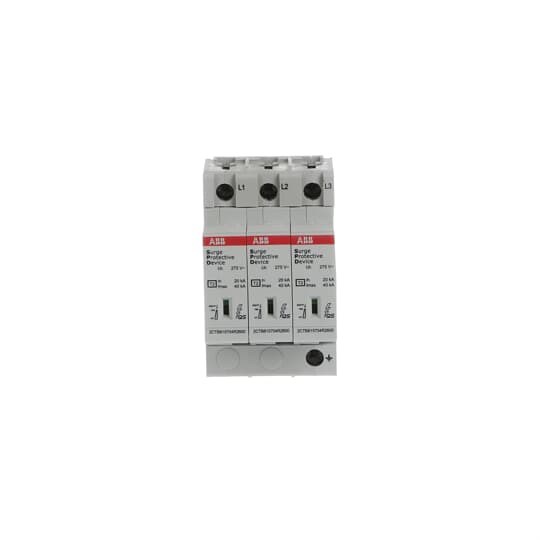

ABB 2CTB815704R1800 Surge Protective Device 2kA 3-P 80kA 230VAC Plug-In IP20

Product Code: 2CTB815704R1800

  • Surge protector with 230 VAC rating
  • Handles up to 80 kA current
  • Plug-in connection for easy setup
  • IP20 protection rated
  • DIN rail mounting compatible
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
3P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
76.7mm
Height
88mm
Width
53.4mm
No. of Modules Width
3

Environmental

IP Rating
IP20
